System III · KT-7 Series · Online DOD · TIJ Handheld
TIJ & DOD.
Resolution at one end. Reach at the other.
Two complementary disciplines, configured by Techtron to a single line. Thermal inkjet for high-resolution barcodes on cartons; drop-on-demand for bold, large-character codes on bags, drums, and pallets.
Two Disciplines
Pixels for the carton.
Strokes for the pallet.
Thermal inkjet (TIJ) uses an HP-derived cartridge head — a dense array of resistors that vaporises ink through hundreds of microscopic nozzles. The result is print resolution of 300 dpi: scannable barcodes, QR codes, and crisp text on the smallest carton.
Drop-on-Demand (DOD) is the opposite end of the spectrum. Larger solenoid valves fire heavier droplets through coarser nozzles at long throw distances. The mark is bold, legible from across the warehouse floor — at character heights of 12 to 50 millimetres.
A single Techtron-designed line frequently uses both: a KT-7 TIJ for the unit carton barcode, a UKCM Online DOD for the case-pack code, and a TIJ Handheld for off-conveyor and pallet marking. One supplier. One service contract. One UAE response number.
The Platforms
Three configurations.
One marking line.
Specify by mark size and substrate. The KT-7 TIJ for high-res, Online DOD for inline large-character, TIJ Handheld for portable off-line marking.

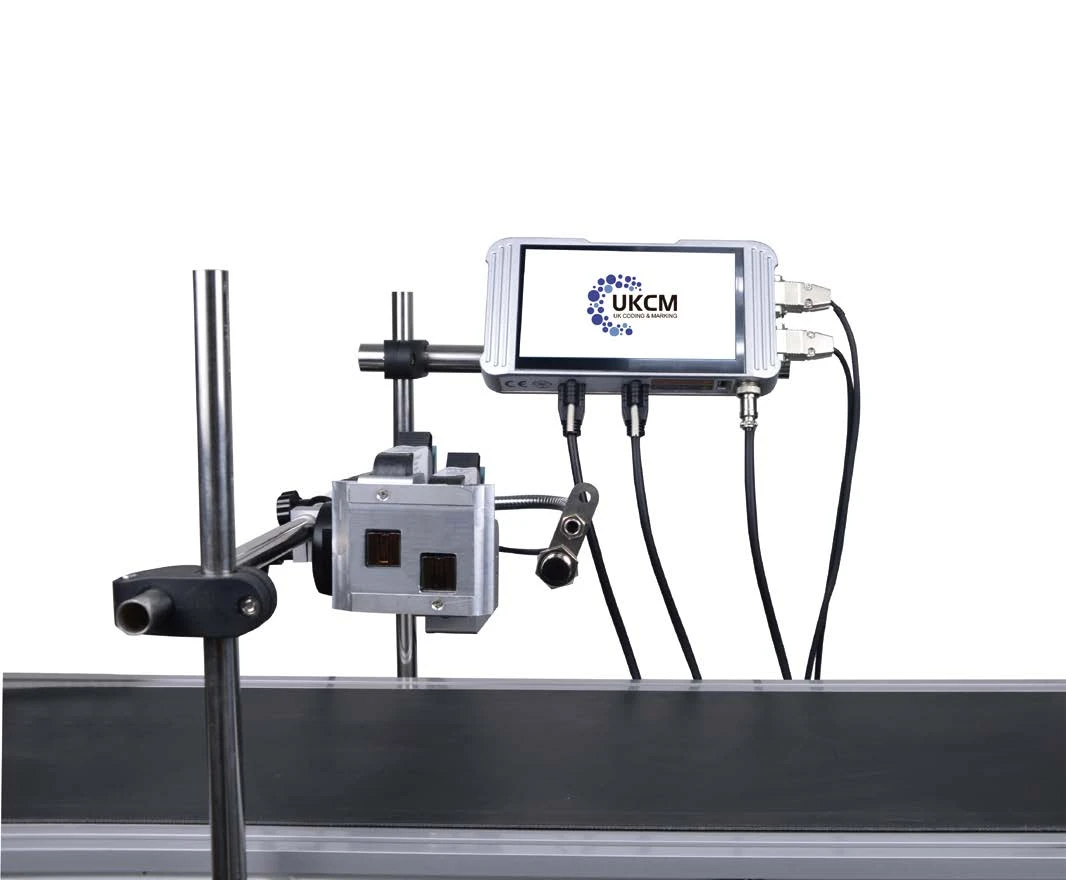

KT-7 Series · TIJ
High-Resolution Cartridge
Thermal bubble inkjet in an aluminium UKCM frame, 1–6 nozzles splice-able on one 7-inch touchscreen controller, half-inch or one-inch cartridges. The default specification for unit-carton barcodes, expiry dates, and product traceability codes on plate, carton, pipe, cable, metal, or plastic.
- Resolution300 dpi
- Print height25.4 mm (half-inch) · 50 mm (one-inch)
- Jet speedup to 40 m/min
- Ink typeCartridge — dry, water, or oil-based
- Best forCartons · Cases · Labels
UKCM · Online DOD
Inline Large-Character
Solenoid valve-based inline coder for cases, sacks, drums, and pallets travelling on the conveyor. Bold characters at long throw distance, low operating cost.
- Matrix7 × 5 · 12 × 7 · 16 × 32
- Character height12 – 50 mm
- Throw distanceup to 25 mm
- InkBulk (oil / pigmented)
- Best forCases · Drums · Pipes

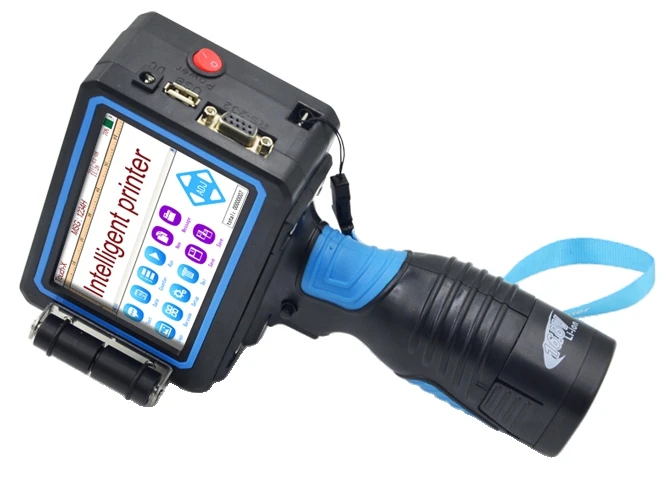

TIJ Handheld Printer
Portable, Cordless Marking
A battery-powered TIJ unit, ABS body with ergonomic grip, single or double-head, for retrofitting batch codes, serial numbers, or logos to oversize, fixed, or off-conveyor product — sacks, drums, wood crates, cable reels. No rail, no fixture, just a pass of the hand.
- Form factorHandheld, 800 g, 14.4V battery
- Resolution300 / 600 dpi (half-height)
- Print height2–12.7 / 2–25.4 / 2–48 mm
- Battery life4+ h continuous
- Best forSacks · Drums · Crates · Cable
Applications
From carton barcode to pallet code.
Most facilities use TIJ and DOD on the same line. A unit-carton 600-dpi GS1 barcode, then a 25 mm shipper code at the case-packer.
Substrate 01

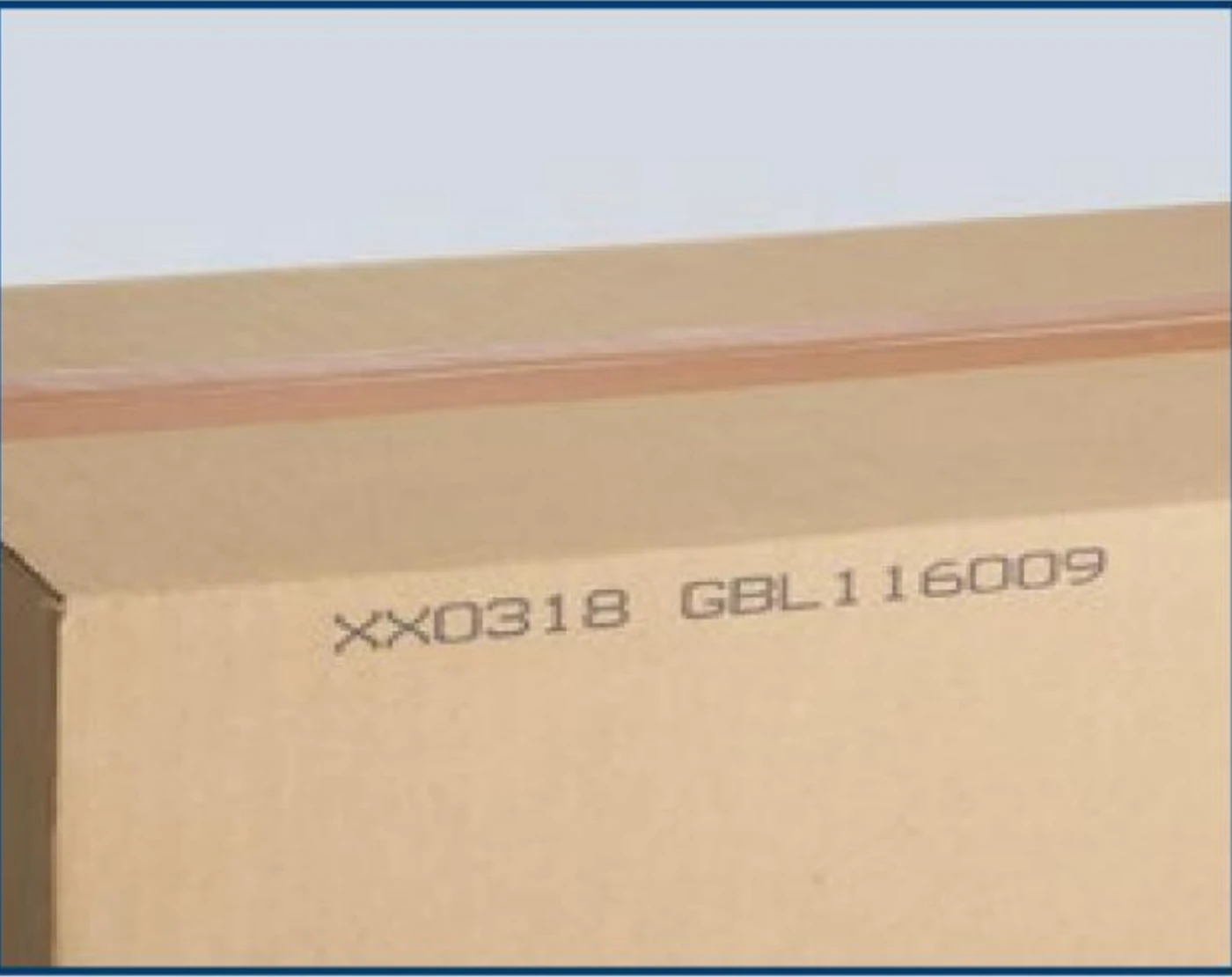

Cartons
Substrate 02

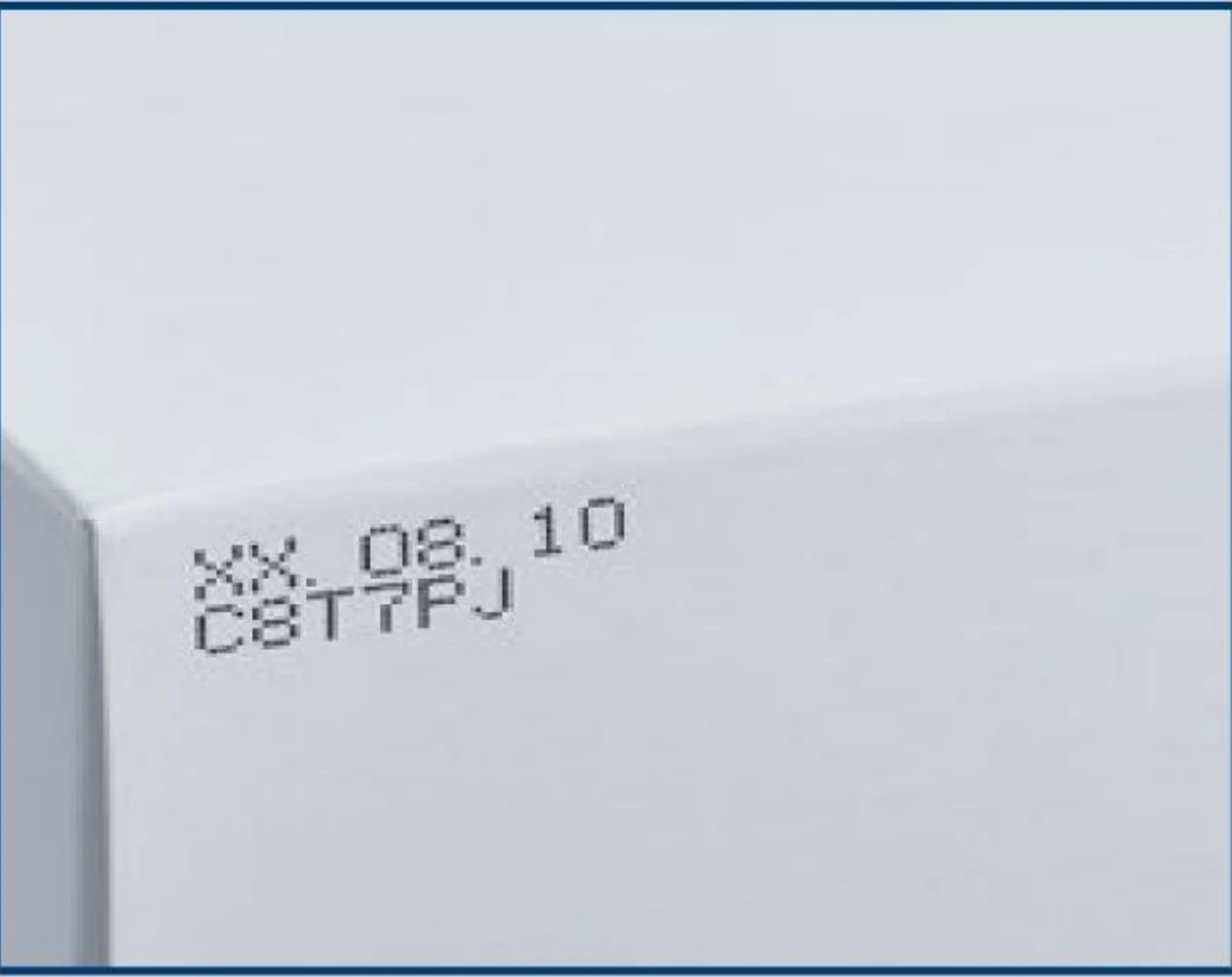

Cases
Substrate 03

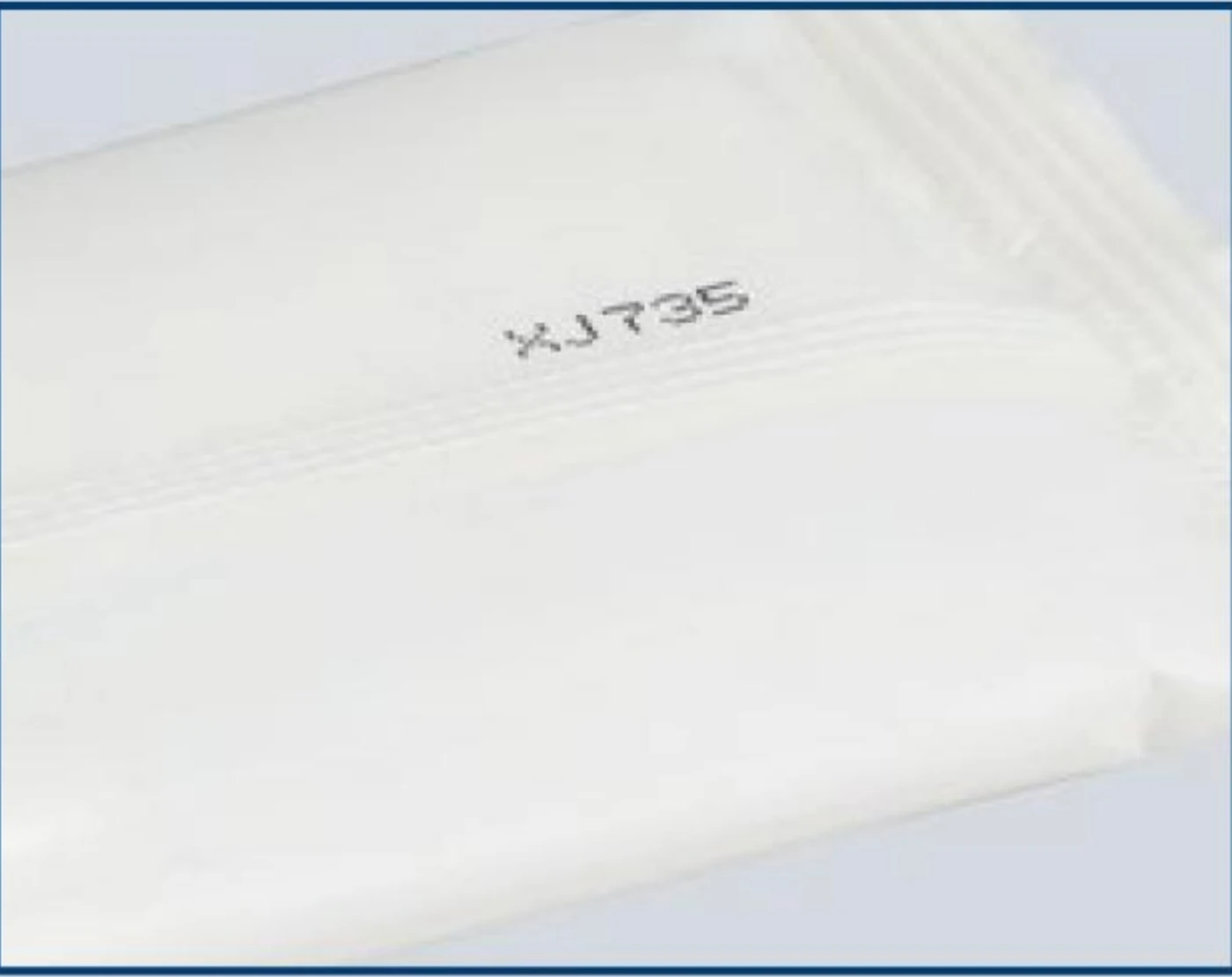

Bags & Sacks

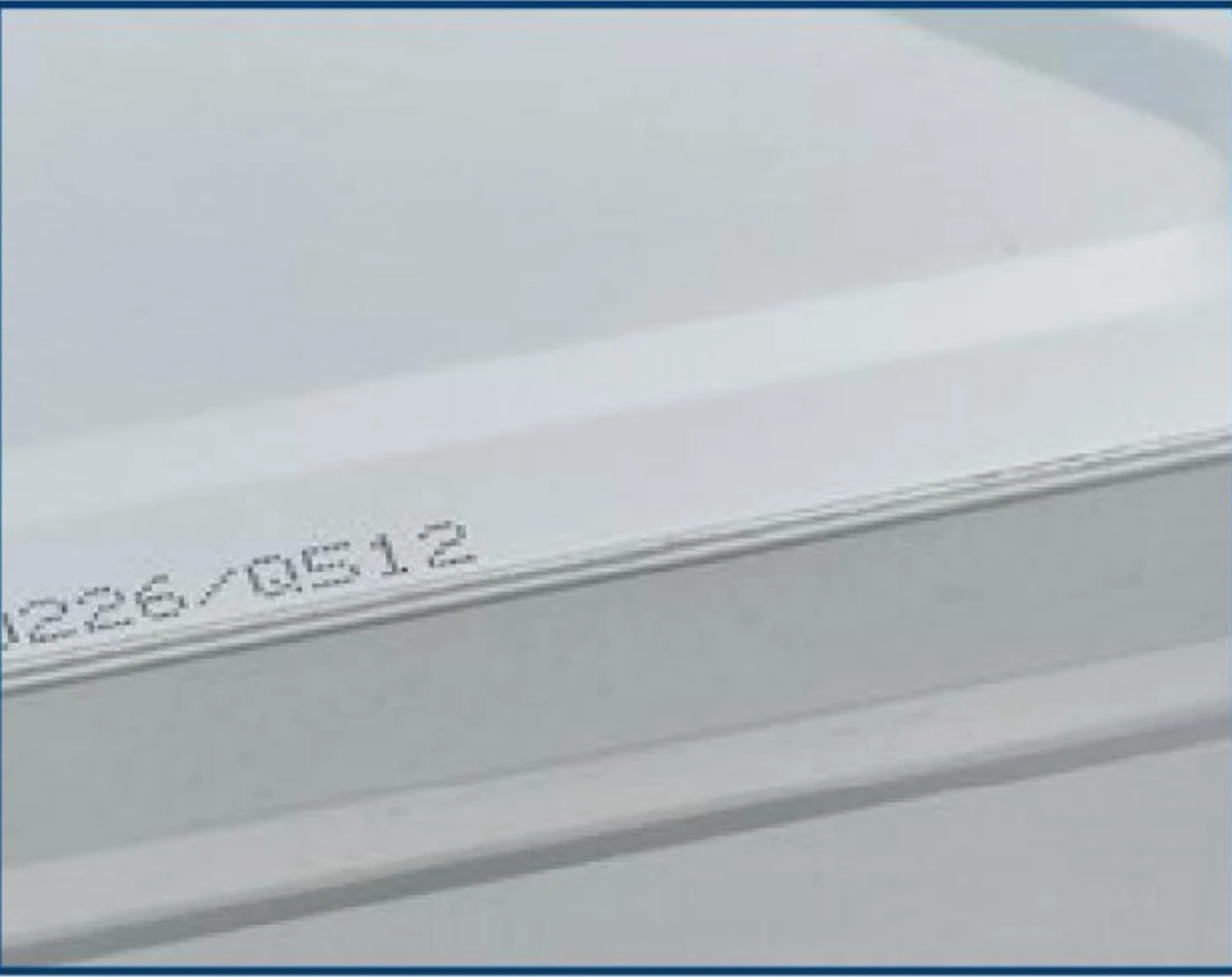

Substrate 04
Drums & Pails
Substrate 05

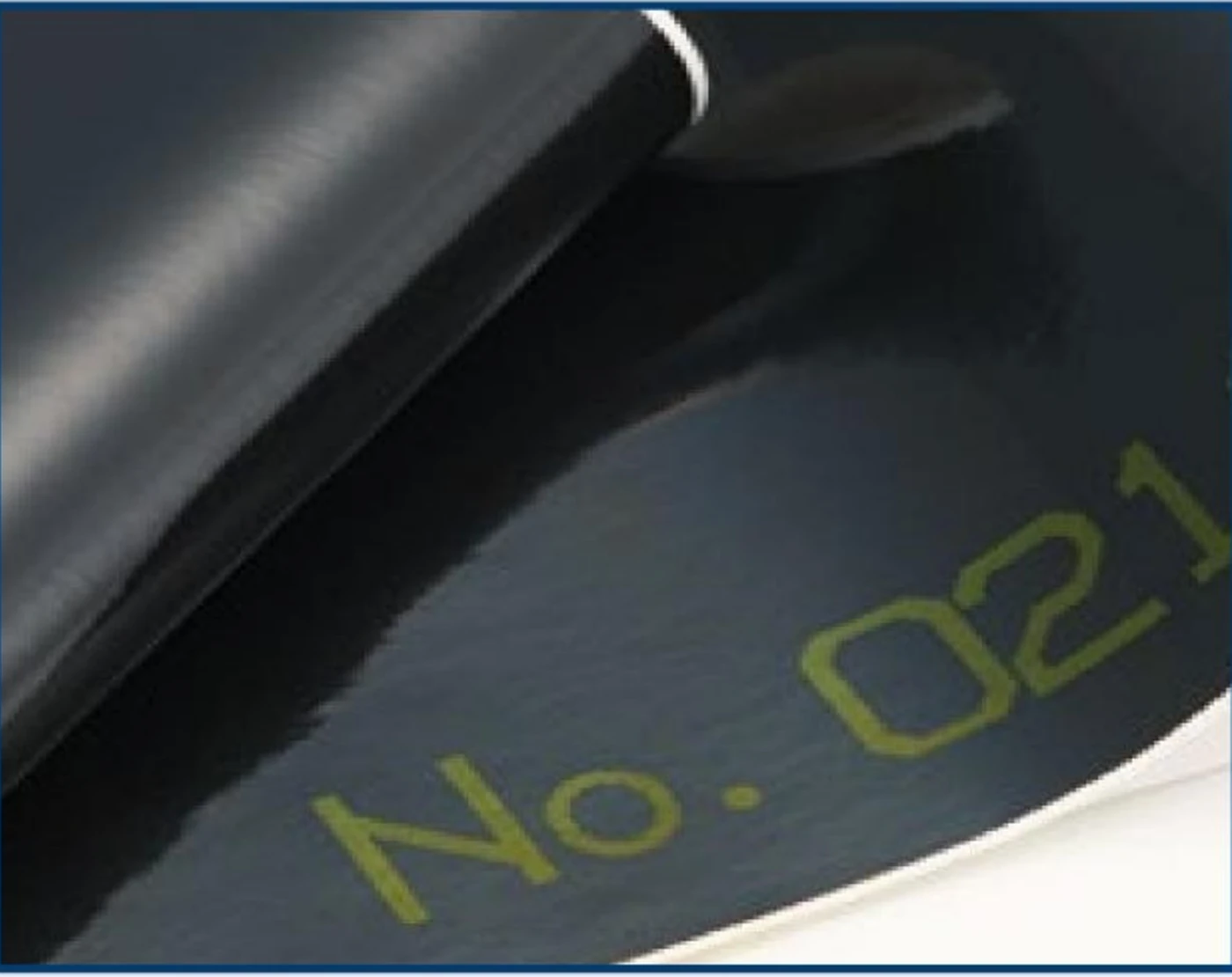

Plastic & Film
Substrate 06

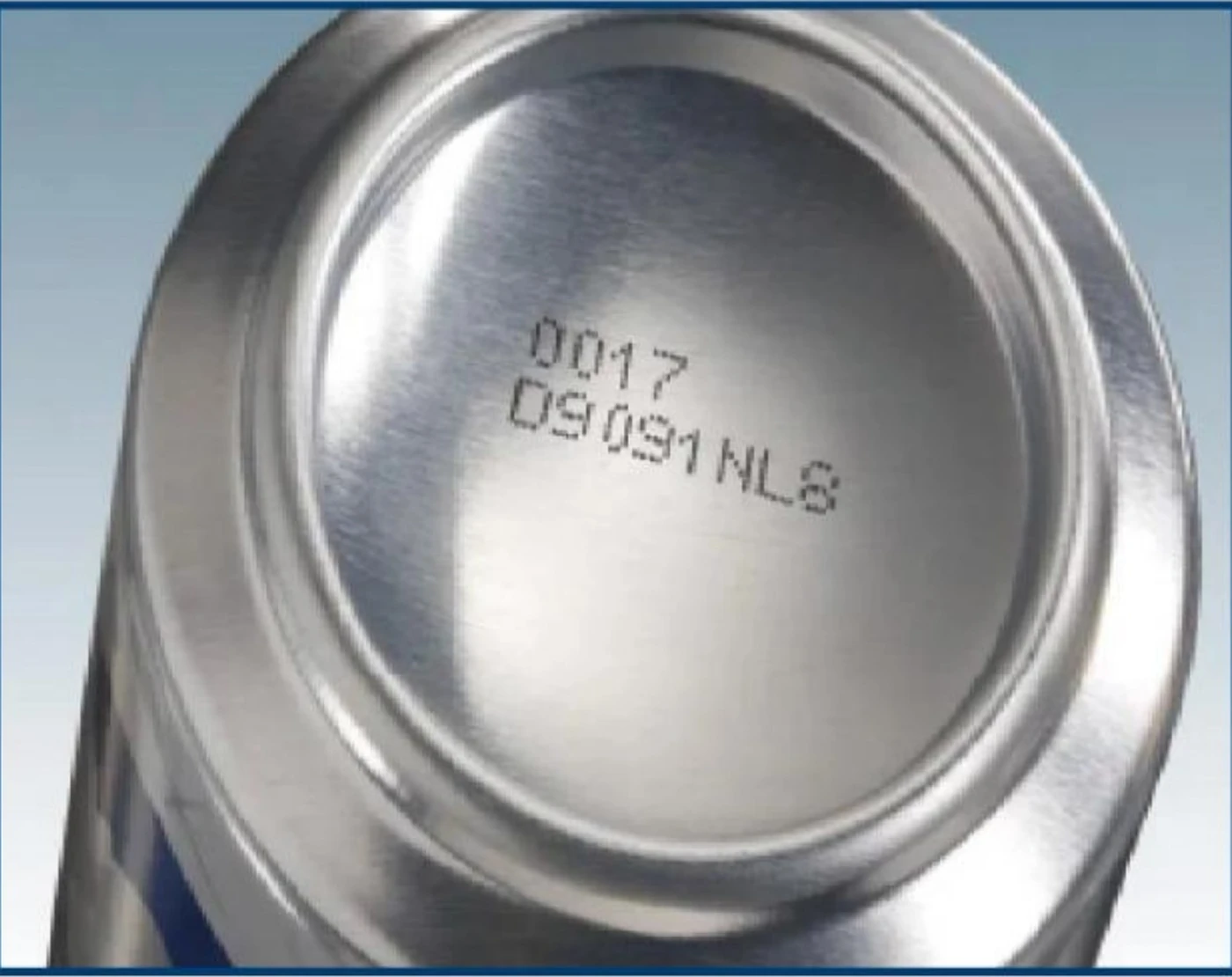

Aluminium
Substrate 07

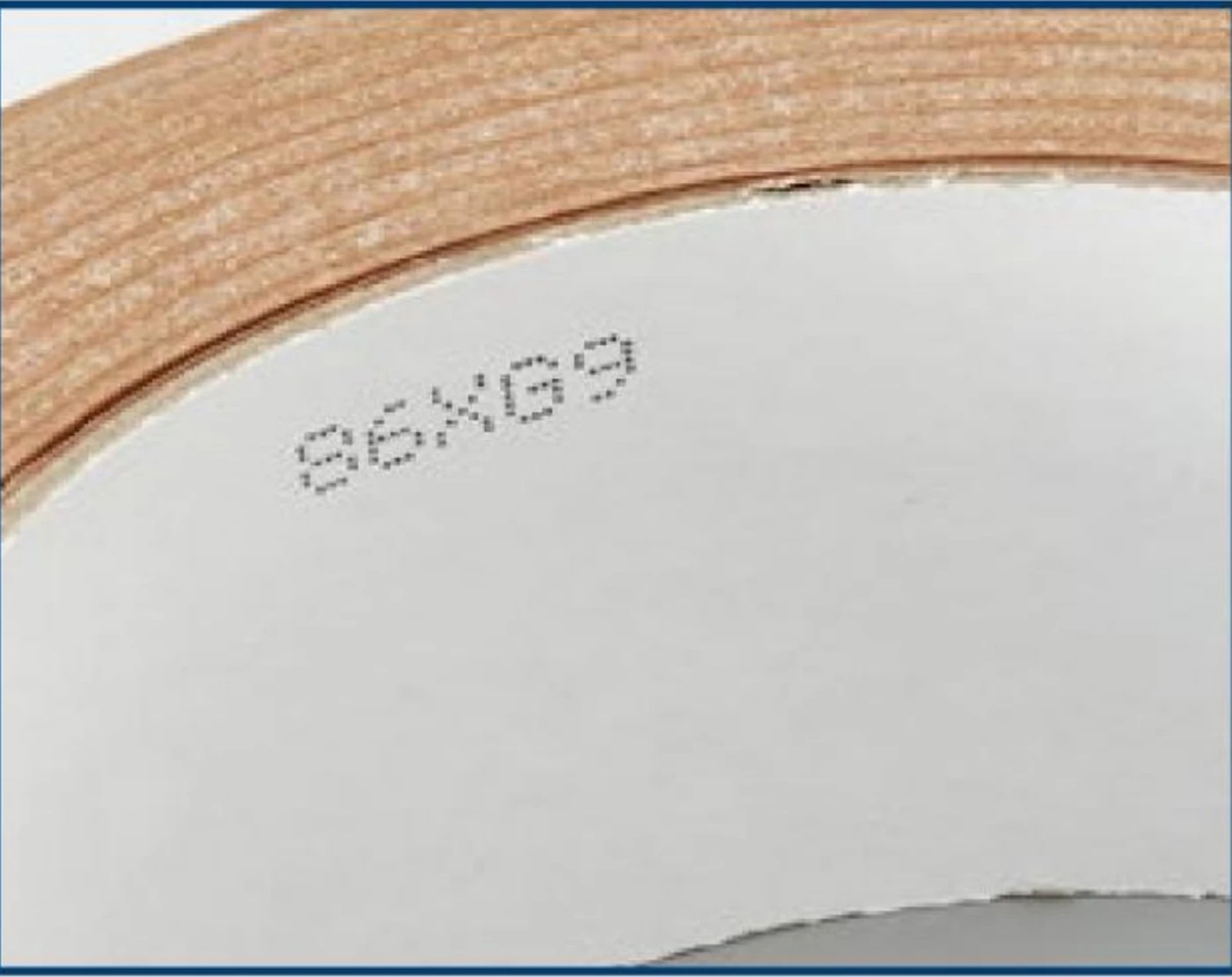

Pipes & Tubes

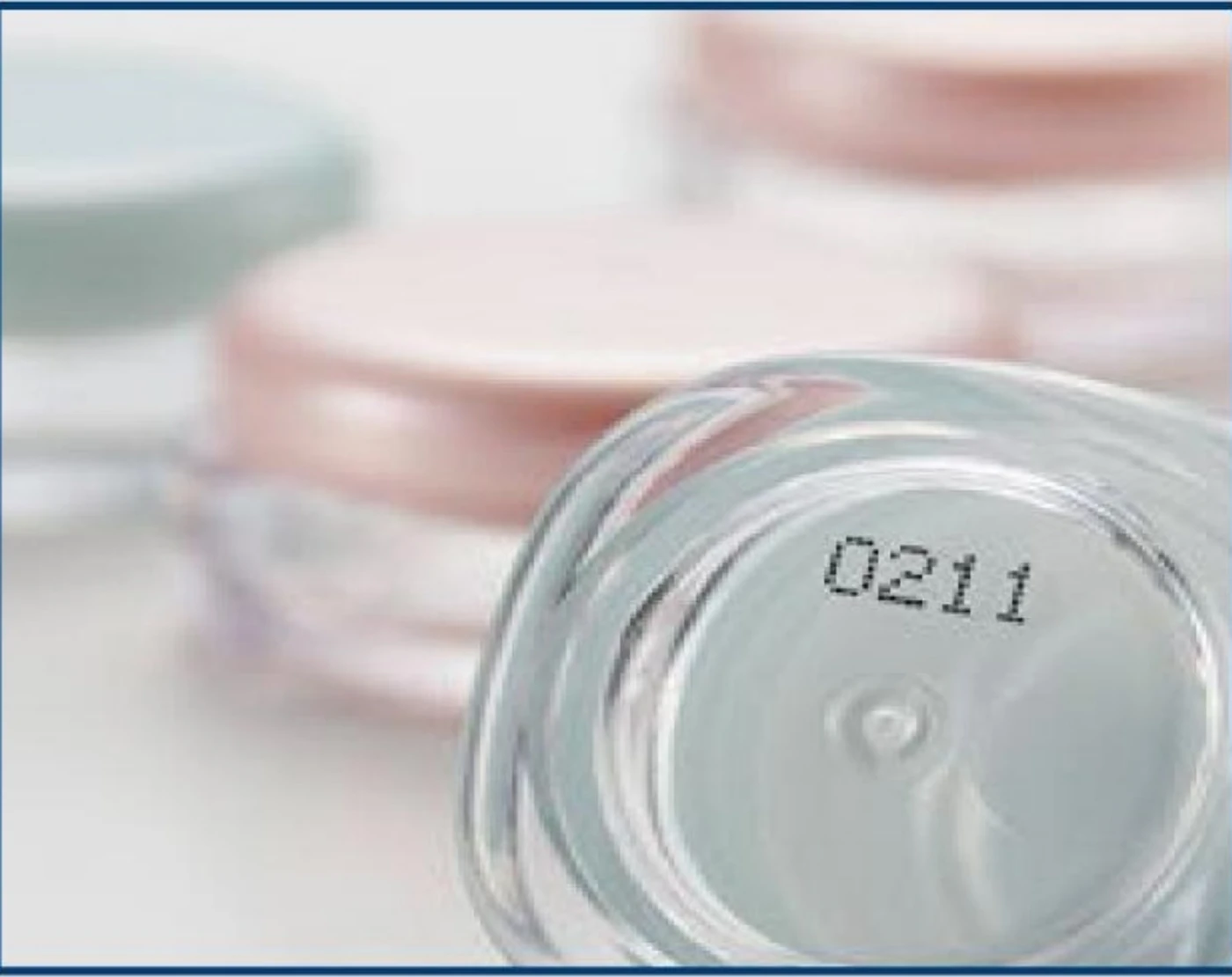

Substrate 08
Glass & Stone
From the Factory
UKCM TIJ — the walk-through.
The KT-series cartridge head explained from the inside: nozzle architecture, the seven-inch controller, and what makes the printhead stable at line speed. Sound on.
UKCM KT-Series TIJ — Field walkthrough. Recorded at UKCM R&D, United Kingdom. 2:18 · 5.6 MB
Technical Profile
TIJ & DOD specifications.
| TIJ resolution | 300 dpi (KT-7) · 300 / 600 dpi half-height (Handheld) |
|---|---|
| TIJ print height | 25.4 mm half-inch · 50 mm one-inch (KT-7) · 2–12.7 / 2–25.4 / 2–48 mm (Handheld) |
| TIJ jet speed | up to 40 m/min (KT-7) · 60 m/min (Handheld, manual pass) |
| TIJ nozzles | 1–6 splice-able, half-inch or one-inch cartridges (KT-7) |
| TIJ spray distance | 2 – 5 mm (KT-7 and Handheld) |
| TIJ printing material | Plate, carton, pipe, cable, metal, plastic, stone |
| TIJ ink chemistry | Dry, water-based, or oil-based cartridge ink |
| TIJ ink colours | Black, red, blue, green, yellow, orange, white, invisible |
| TIJ storage | 3 GB onboard (KT-7) · unlimited (Handheld) |
| KT-7 body / controller | Aluminium, 210 × 110 × 40 mm |
| KT-7 accessories | Floor stand, anti-collision device, encoder, trimming device, conveyor belt, customised stand |
| TIJ Handheld size / weight | 140 × 53 × 238 mm · ~800 g · ABS body, 14.4 V lithium, 4+ h continuous · single or double-head |
| DOD matrix | 7 × 5, 12 × 7, 16 × 32 dot |
| DOD character height | 12 – 50 mm |
| DOD throw distance | up to 25 mm (inline) |
| DOD ink chemistry | Oil-based or pigmented bulk ink |
| Connectivity | Ethernet, USB, RS-232, HDMI; PLC handshake (Online DOD) |
| HMI | 7" capacitive touch (KT-7) · 5" / 800×480 touch (Handheld) · 20 languages |
| Code types | Code128 · Code39 · Int25 · UPC-A · EAN13 · QR · variable QR · DataMatrix · counter · date/time |
| Operating temperature | 0 °C – 40 °C, 10–80% humidity (TIJ) · 5 °C – 45 °C (Online DOD) |
Next
Specify the right tool for the carton.
And the pallet.
Most production lines need both. Send us the package hierarchy — primary, secondary, tertiary — and we'll return the marking architecture.
