System I · CIJ · UKCM C310 Series
Continuous Inkjet.
The flagship coding line.
Non-contact, high-velocity coding for production lines that never stop. The UKCM C310 series places legible batch codes, expiry dates, and barcodes on virtually any surface — at speeds beyond 300 metres per minute, with self-diagnostic intelligence that eliminates manual maintenance.
The Technology
A continuous stream.
An exact mark.
Continuous Inkjet generates a stream of micro-droplets at the printhead. Charged droplets are deflected onto the substrate; uncharged ones return to a recirculating reservoir. The result is high-speed, non-contact coding — without ever pausing the line.
Because the printhead never touches the product, CIJ handles curved bottles, cables in motion, eggs on a conveyor, and condensation-wet packaging with equal precision. UKCM's C310 platform layers that physics with a 10.1-inch HD touchscreen, IP-rated electronics, and a Fourier-core algorithm that calibrates ink dots in real time — engineered for 24-hour operation on UAE production floors.
Variable data — date, time, batch, shift, counter, GS1 barcode, QR — is rendered in clean micro-character form, scannable on the first pass. Modular parts replace in minutes. Engineers in Sharjah and Dubai are within hours of any line.
The C310 Series
Smart. Automated.
Durable.
The C310 is engineered around three principles. No operator training. No surprise downtime. No retired units. Each pillar maps to a specific subsystem inside the printer.
Smart
Continuous Self-Optimization
A Fourier-core algorithm calibrates ink dot dynamics in real time. A standalone viscometer measures ink viscosity continuously. The printer diagnoses itself and adjusts parameters before quality drifts — no operator intervention.
- AlgorithmFourier-core
- Ink monitoringStandalone viscometer
- DiagnosticsOne-touch auto-test
- Display10.1″ HD touchscreen
- RemoteEthernet · mobile
Automated
Zero-Touch Maintenance
Intelligent nozzle heating. Four-solenoid valve printhead. Auto clean and shutdown routines. The printer maintains itself between scheduled service — saving 18 manual interventions per month on a typical 24-hour line.
- Print speed2,160 chars/sec
- Print direction360° omnidirectional
- Line range1 – 5 lines
- Print height2 – 30 mm
- CleaningAutomated
Durable
Built for the Production Floor
The printhead survives accidental wetting and impact. The body is stainless steel. The connectors are plug-and-play for sensors, encoders, and other I/O. Designed for the harshest manufacturing environments — including UAE summers.
- Operating temp0 – 45 °C
- Humidity30 – 90 % RH
- Power100 – 240 V AC, 150 VA
- Weight18 kg
- Nozzle lengthStandard 3 m
Applications
Where CIJ proves itself.
Wherever the line moves quickly and the surface is uneven, irregular, wet, hot, or in motion — CIJ is the unconditional answer.
Application 01

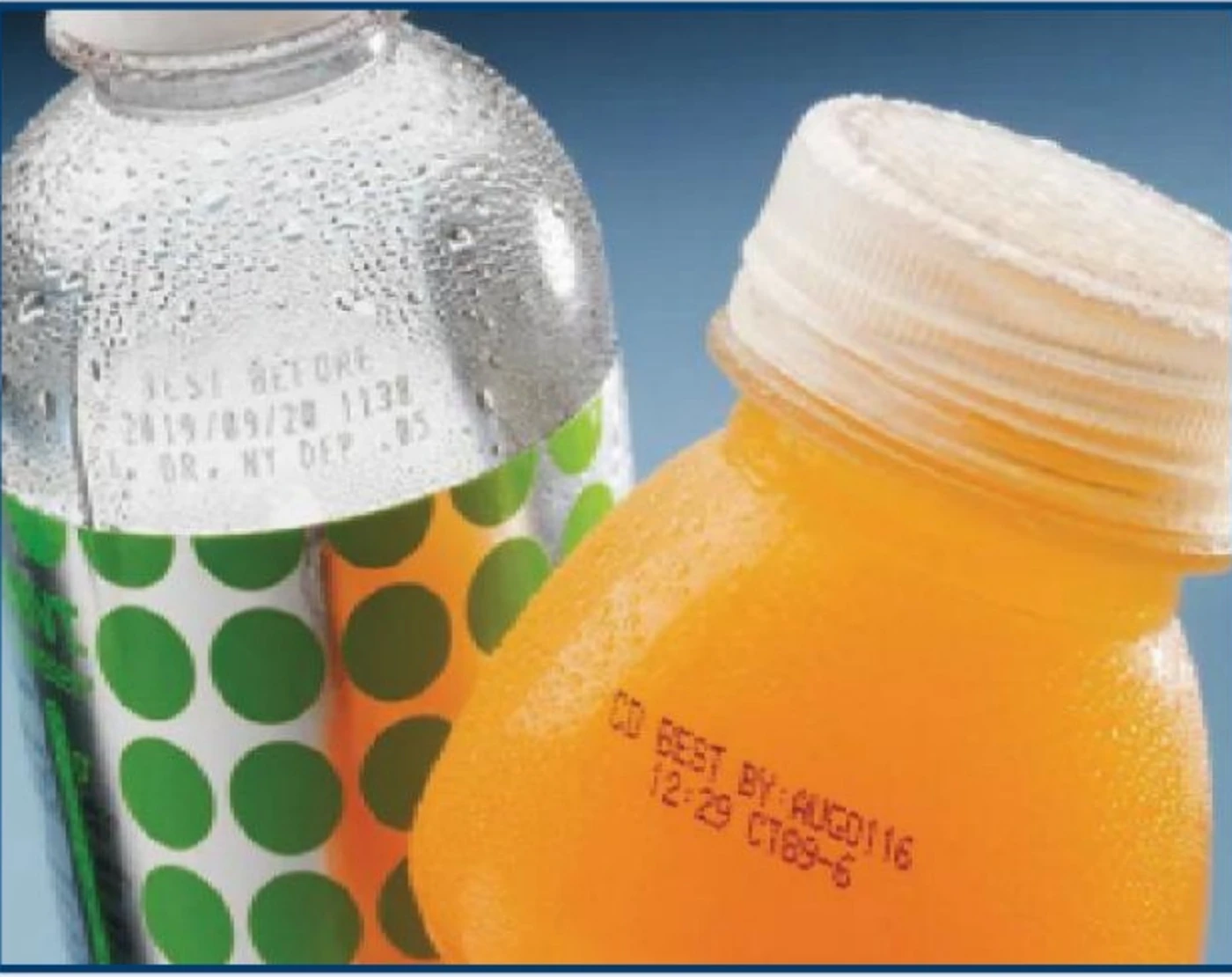

Beverage
Application 02

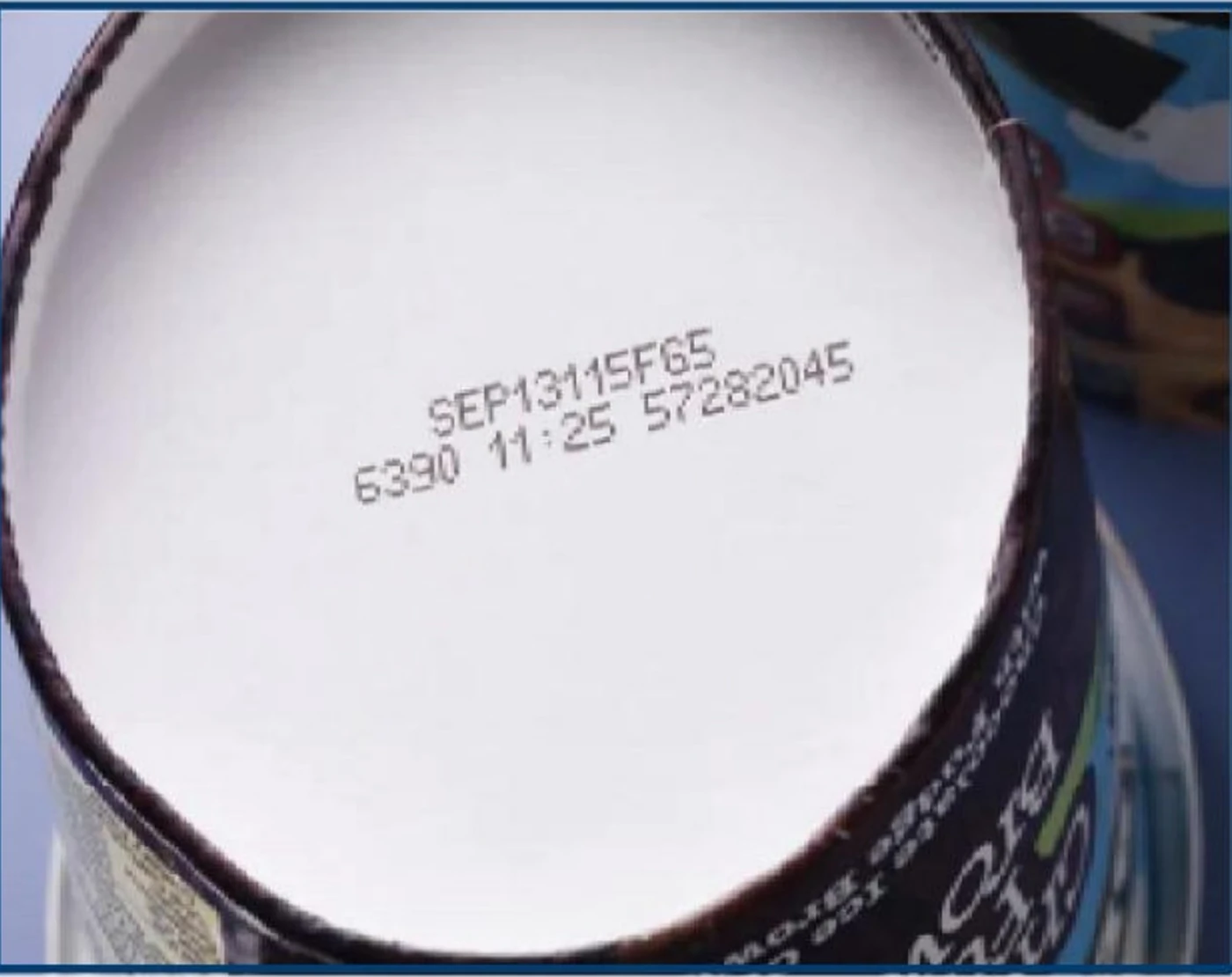

Food & Eggs
Application 03
Aluminium Cans
Application 04
Glass Containers
Application 05
Cartons & Cases
Application 06

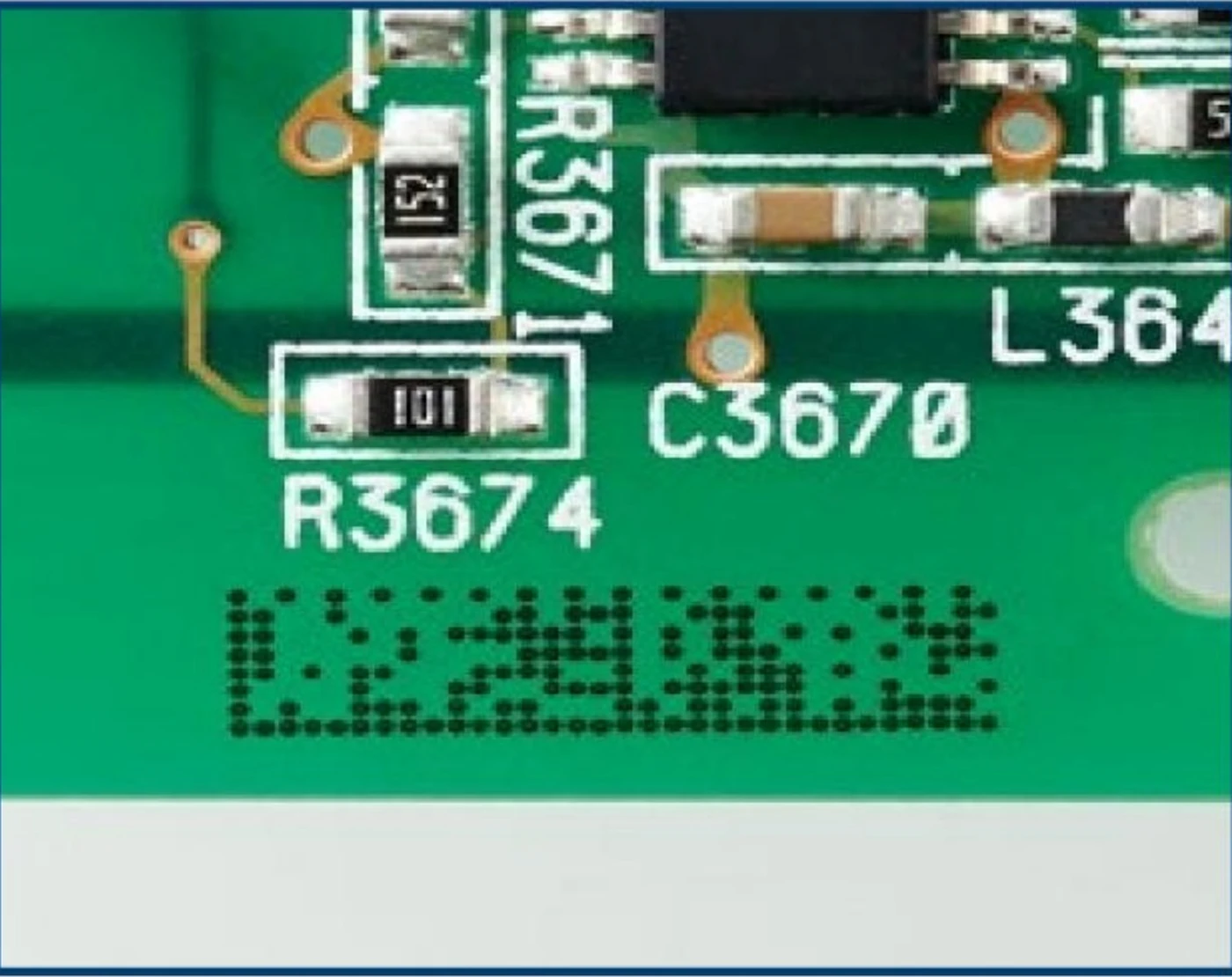

Electronics & PCB
Application 07
Pouches & Films
Application 08
Tubes & Cores
From the Factory
John Wildy, UKCM R&D.
A short walk-through of CIJ from the engineer who builds them — the architecture, the interface, the printhead. Sound on for the full tour.
CIJ platform — Field walkthrough. Recorded at UKCM R&D, United Kingdom. 90 sec · 4 MB
Technical Profile
The C310 specification, at a glance.
| Print technology | Continuous Inkjet, charged-drop electrostatic deflection |
|---|---|
| Print lines | 1 – 4 lines (7×5) · 1 – 5 lines (5×5) |
| Print fonts | 5×5, 7×5, 9×6, 12×6, 16×12, 24×11, 32×16, 34 |
| Maximum print speed | 2,160 characters per second |
| Print direction | 360° omnidirectional |
| Character height | 2 – 30 mm |
| Display | 10.1″ HD touchscreen, multi-language including Arabic |
| Storage | 1,000+ message templates onboard |
| Connectivity | USB · RS-485 · Ethernet |
| Nozzle length | 3 metres standard |
| Operating environment | 0 – 45 °C · 30 – 90 % RH non-condensing |
| Power | AC 100 – 120 / 220 – 240 V ±10 %, 50/60 Hz, 150 VA |
| Weight | 18 kg |
| Dimensions (W × D × H) | 285 × 385 × 685 mm |
Next
Specify a C310 for your line.
Send us the substrate, line speed, code content, and shift pattern. We'll return a model, an ink specification, and an installation date.
